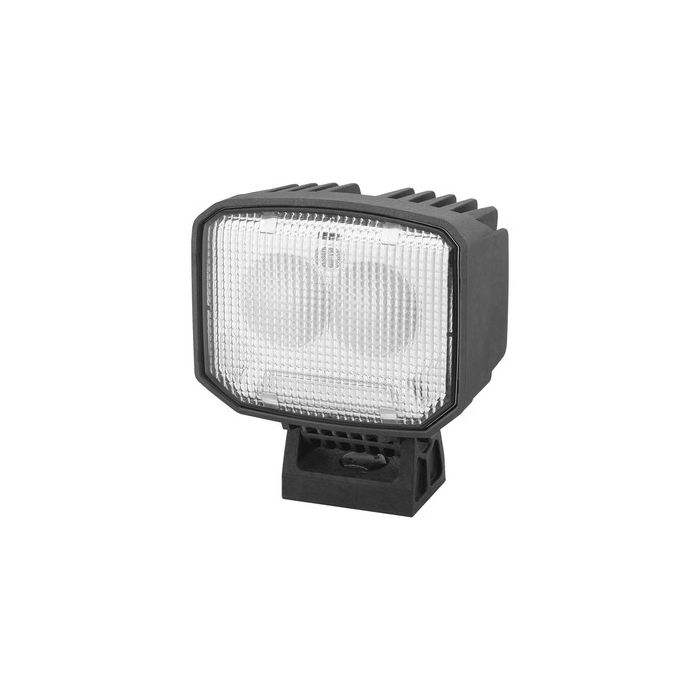

Hella 2ZR996588501 Power Beam S Series Reverse Lamp

Hella 2ZR996588501 Power Beam S Series Reverse Lamp

Hella power beam s series reverse lamp, a heavy-duty work lamp for trucks, machinery, agricultural and mining vehicles.

LED-Reverse Light - Power Beam S - 12/24V - mounting/Screw Connection - Screw-on - Long-range illumination - Plug: DEUTSCH plug

With its universally suitable design, the HELLA S-series Power Beam reverse lamp is perfect for the replacement of existing halogen units like for like. Its higher efficiency and longer service life are most impressive features. And the light output of 1,000 lumens provided by the S-series Power Beam reverse lamp ensures safe manoeuvring even in the dark. The light, so similar to daylight, is distributed homogeneously and widely over the working and manoeuvring area to the rear. Thanks to the automatic dimming as soon as a temperature of +50 °C is reached and also because of the new, efficient cooling fins, the LED reverse lamp never overheats. The housing, cover lens and bracket are all made of special, very lightweight, corrosion-resistant plastics. Because of this weight reduction and as a result of higher energy efficiency, the S-series Power Beam reverse lamp also contributes towards reducing CO2 in the atmosphere. Its ADR/GGVSEB approval makes this reverse lamp suitable for the transporting of hazardous goods . It is also absolutely dustproof and waterproof and high-pressure jet cleaner resistant. Upright or pendant mounting is possible.

Features

• Lamp Type: LED
• Clear diffusing lens
• Registration Type: ADR/GGVS - Fulfils ECE norm.: R10/R148
• with housing - Housing Colour: Black
• Width: 112mm - Height: 126mm - Depth: 66mm
• Halogen replacement series
• Longer service life and higher efficiency compared to halogen
• Low weight and high corrosion resistance thanks to plastic materials
• ADR/GGVSEB certified for hazardous goods transport

Specifications

• Part number: 2ZR996588501
• Hella number: 2ZR 996 588-501
• Barcode (EAN): 9002920172523
• Brand: Hella
• Mounting Type: Screw Connection / mounting
• Fastening Type: Screw-on
• Light Design: LED
• Lamp Type: LED
• Voltage: 12 / 24 V
• Voltage from: 9 V
• Voltage to: 32 V
• Fitting Position: Rear Fitting
• Length: 95 mm
• Height: 126 mm
• Width: 112 mm
• Depth: 66 mm
• Diameter: 112 mm
• Light Distribution: Ground Illumination
• Light Function: with reverse light (LED)
• Number of light functions: 1
• Number of LEDs: 2
• Number of pins: 2
• Registration Type: ADR/GGVS approved / ECE approved
• fulfils ECE standard: R10 / R148
• Plug Type: DEUTSCH plug
• Housing Type: with housing
• Housing material: Plastic
• Housing Colour: black
• Lens Colour: Crystal clear
• Lens Type: clear lens
• Lens Material: PC (Polycarbonate)
• Theoretical luminous flux: 1437 lm
• Luminous Flux: 1150 lm
• Colour Temperature: 5000 K
• Protection Type per ISO 20653: IP6K7 / IP6K9K
• Temperature range from: -40°C
• Temperature range to: 85°C
• Power Consumption: 11.2 W
• Weight: 398 g
• Product line: Power Beam S

Assy./disassy. by qualified personnel required!
