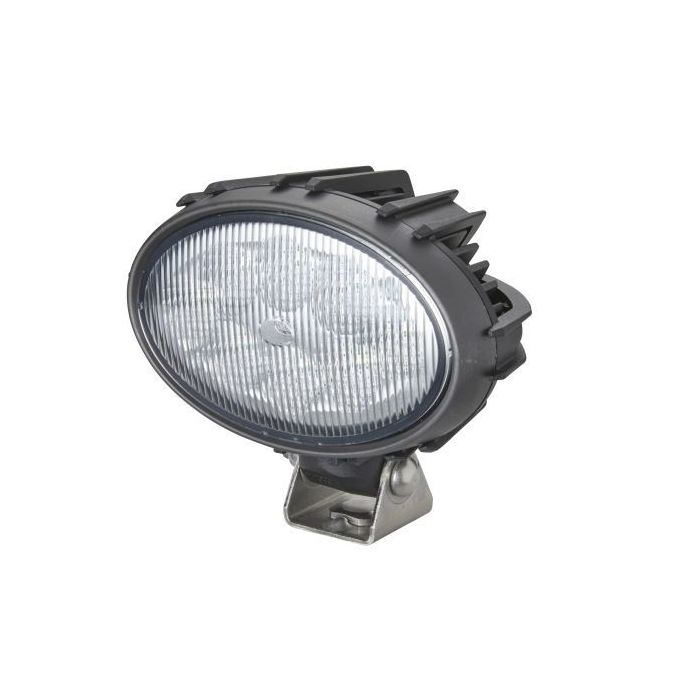

Hella 1GA996661501 Oval 100 LED Thermo Pro Work Lamp, Upright Or Pendant Oval 100 LED Thermo Pro

Hella 1GA996661501 Oval 100 LED Thermo Pro Work Lamp, Upright Or Pendant Oval 100 LED Thermo Pro

Hella oval 100 LED thermo pro work lamp, upright or pendant oval 100 LED thermo pro, a heavy-duty work lamp for trucks, machinery, agricultural and mining vehicles.

LED-Worklight - Oval 100 Thermo Pro - 24/12V - 1700lm - mounting/Bolted - Swivelling Mounting Bracket - Short distance lighting - Plug: DEUTSCH plug

The new innovative plastic housing not only offers complete corrosion resistance but also many new mounting options.

The heat-conducting plastic housing is equipped with cooling fins on the back, which provide the necessary heat dissipation for the 8 high-power LEDs.

The specially developed multi-faceted reflector guarantees homogeneous illumination of the work area.

The plastic housing is hermetically sealed and thus waterproof, submersible and resistant to high-pressure cleaning (IP 6K9K, IP 6K8).

For the first time, the Oval 100 LED is also available with a lateral swivel joint mounting, which offers additional adjustment options during installation.

The Oval 100 LED Thermo Pro is the latest version of the already extensive Oval 100 worklight series. The new innovative plastic housing offers complete corrosion resistance as well as many new mounting options. For the first time, the Oval 100 LED is also available with a lateral swivel joint attachment, which offers additional adjustment options for mounting. The heat-conducting plastic housing has cooling fins on the back to ensure the necessary heat dissipation of the 8 high-power LEDs. Thanks to its light output of 1,700 lumens, the Oval 100 LED is ideal for replacing old halogen worklights (H3, H9) - and that with only 25 watts of energy consumption. The specially developed multi-faceted reflector guarantees homogeneous illumination of the working area. The Oval 100 LED Thermo Pro can be mounted upright (0°), suspended (180°) and in the swivel joint version also sideways (90°). At 6,500 Kelvin, the light is similar to daylight. This causes colours to distinguish themselves more clearly in the dark than in the yellowish light of halogen bulbs, making it much easier for the human eye to perceive the senses and prevent eye fatigue. The plastic housing is hermetically sealed and thus watertight, submersible and resistant to high-pressure cleaning (IP6K9K, IP6K8). The integrated electronics protect the unit in case of reverse polarity and ensure constant brightness even with fluctuating operating voltages from 9 to 33 volts. Temperature sensors protect the worklight from overheating to ensure a long service life of the LEDs and safe working at night.

Features

• Lamp Type: LED - Number of LEDs: 8 - Power consumption: 25W - Colour Temperature: 6500K
• Patterned diffusing lens
• Fulfils ECE norm.: R10 - Prot.type (IP Code): IP6K9K/IP6K7
• Synthetic Material Housing - Housing Colour: Black
• Width: 166mm - Height: 146mm - Depth: 83mm - with swivel joint base

Specifications

• Part number: 1GA996661501
• Hella number: 1GA 996 661-501
• Barcode (EAN): 9002920153560
• Brand: Hella
• Mounting Type: Bolted / mounting
• Fastening Type: Swivelling Mounting Bracket
• Light Design: LED
• Lamp Type: LED
• Voltage: 12 / 24 V
• Height: 146 mm
• Width: 166 mm
• Depth: 83 mm
• Light Distribution: Short-Range Illumination
• fulfils ECE standard: R10
• Plug Type: DEUTSCH plug
• Protection Type per ISO 20653: IP6K7 / IP6K9K
• Luminous Flux: 1700 lm
• Colour Temperature: 6500 K
• Number of LEDs: 8
• Power Consumption: 25 W
• Housing Type: Synthetic Material Housing
• Housing Colour: black
• Lens Type: patterned lens
• Product line: Oval 100 Thermo Pro

with swivel joint base Assy./disassy. by qualified personnel required!
